Prospec Electricals is one of the leading Supplier of a quality range of Perforated Type Cable Trays, Ladder Type Cable Trays, Floor Trucking Type Cable Trays, Cable Tray Accessories (Perforated Type), Cable Tray With Cover, Raceways With Cover, Cable Ducts/ Trunking / Raceways, Coupler Plates With Hardware, Floor Junction Boxes, GI Earthing Strips and Accessories of Cable Trays. Fabricated using superior quality basic material, we also test the entire range of finished products on well defined parameters to ensure their adherence with defined industry standards. Our products are known for features like optimum tensile strength, reliable performance, rugged construction and corrosion resistant finish.

Our superior quality Perforated Cable Tray are in high demand due to usage of high quality raw material which enhances life of product in all weather conditions, these technically advanced products are specially designed to satisfy requirements of our esteemed clients. Perforated Cable Trays are made of Mild Steel / CRC, Painted or hot dipped as per installation site requirement for various industries such as Ship Building, Steel & Power Plant, Cement Plant, sugar Industries etc. Perforated cable trays are made for Easy Installations, Instant approach for repairs and replacement of cables. Suitable for any structure wooden plank or Steel angle in any running length.

Ladder Type Cable Trays are used to distribute cable and has been designed carefully keeping in mind industrial requirements. These trays are manufactured using top quality material and are available in various sizes. We can offer customized solution for all the products.

Owing to our experience, we cater to the requirements of our clients by offering a wide range of Cable Tray Support Systems. The team of our diligent professionals manufacture these products using high grade raw material and latest technology. This Cable Tray Support is provided with our tray as a single source of supply. Part of the channels that support the Cable Tray throughout the length are as follows:• Coupler Plates
• Threaded Rod
• Runners
• Bullet Fasteners

We supply Perforated Cable Tray with Covers, We offer the most extensive range of perforated type cable trays, which are used for the installation of cables having high load bearing capacity.Cable Tray with Cover can also be mounted on wall using brackets, covers of cable tray provide security and life of product, cable tray can customized depending upon the specific requirements.



Cable Ducts/ Trunking / Raceways are known to be best option for installation of under floor or under ceiling covered cables and networking cables requirements in I.T sectors and other industries. The high performing cable raceways are made using Mild Steel IS 1079, Pre-Galvanised Sheet, that provide in them superior quality as well as durability. Cable Raceways are manufactured in Single, double or triple compartments, Triple Compartments are normally designed to distribute power, data and voice cables in separate compartments.
Remarks: All Bends are made available as per Requirement.• Raw Material   : Mild Steel IS 1079, Pre-Galvanised Sheet.
• Width:  75 mm – 600 mm.
• Height: 50 mm – 100 mm.
• Thickness: 1.6 mm – 3 mm.
• Length:  2500 mm.
• Finish : Self Finish, Pre-Galvanised, Hot Dip Galvanising, Painted (Red oxide, Painted & Powder Coated)

We are engaged in supplying Perforated Cable Tray with Covers, We offer the most extensive range of perforated type cable trays, which are used for the installation of cables having high load bearing capacity.Cable Tray with Cover can also be mounted on wall using brackets, covers of cable tray provide security and life of product, cable tray can customized depending upon the specific requirements.

We offer a wide variety of GI Earthing Strips that are well appreciated for features like high tensile strength, corrosion free and durable finishes. Our strips are in great demand due to their durability and high reliability.Our range is widely demanded in the global market owing to their striking features such as electrical and thermal conductivity. Available in different sizes, these earthing strips are also supplied by us as per clients’ requirements and specifications.

Raw Material	Mild Steel as per IS 2062
Sizes	20×3, 25×3/6, 30×5/6, 35×5/6,   40×5/6
Finish	Hot Dip Galvanised as per   I.S.2629/4759, BS 729,ASTM 123

Supplier of Earthing Plates.

Raw Material	Mild Steel, Cast Iron
Sizes	300 x 300 x 6 / 8
	600 x 600 x 6 / 8
	1000 x 1000 x 10 / 12
Finish	Self finish,Hot Dip Galvanized as   per I.S. 2629 /4759, BS 729, ASTM 123

CONFORMING TO IS 5424/69 BLACK OR RED, PLAIN/CORRUGATED & CHEQUERED`APPLICATIONRubber mats are used as floor covering around electrical panels as a safeguard to the life and limb of the workmen due to possible leakage of current and short-circuit. Rubber mats are used in power generation plants, sub-stations, workshops etc.



Surface	The rubber mats have chequered,   anti-skid fluted design or plain at bottom as per the requirement of the   purchaser.
Thickness Range	8.5 mm to 25 mm for chequered or fluted   6.5 mm to 25 mm for plain.
Length x Width	2.0 mtr x 1.0 mtr.1.8 mtr x 0.9 mtr.
Colour	Black unless otherwise specified by the   purchaser. Any colour also available on request.
Technical Particulars	Tensile strength 50 kgf/cm2Elongation at break 250%
Voltage Test	The rubber mats are tested to pass the voltage   test at 15000 volts for one minute without any puncture or warming effect.
Breakdown Strength	Shall not fail at less than 40000 volts   as per the procedure outlined in IS : 2584/83


We offer quality Copper Earthing Wire. These copper earthing wires are basically used in televisions, computers, monitors, any display item and in automobile electronics instruments. The CRT earthing wire assemblies are complex shape wire and cable used as overhead power source for subways, light and heavy transit systems, electrically powered mine trains, buses and industrial cranes.

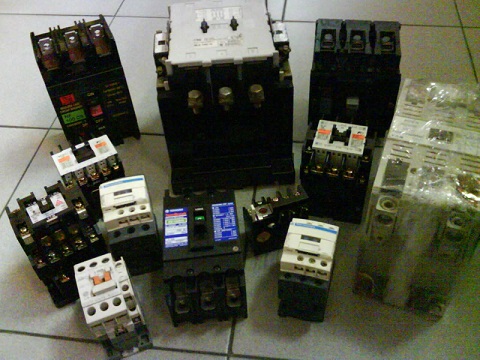

Supplier of Connectors and MCCB of Siemense, Schneider and L&T make.
